Kuat’s Piston ION 2 Rack Was Built With Heavy E-Bikes in Mind

Kuat is a major player when it comes to vehicle bike racks, and its latest offering is built especially for transporting electric bikes and handling off-road routes. The Piston ION 2 E-bike Rack is sturdy enough for heavy e-bikes and bumpy trails if you’re headed off the grid, while boasting a streamlined and premium design. But is the new Kuat Piston ION on bike rack right for your ride?

Off-Road-Approved E-Bike Hitch Rack

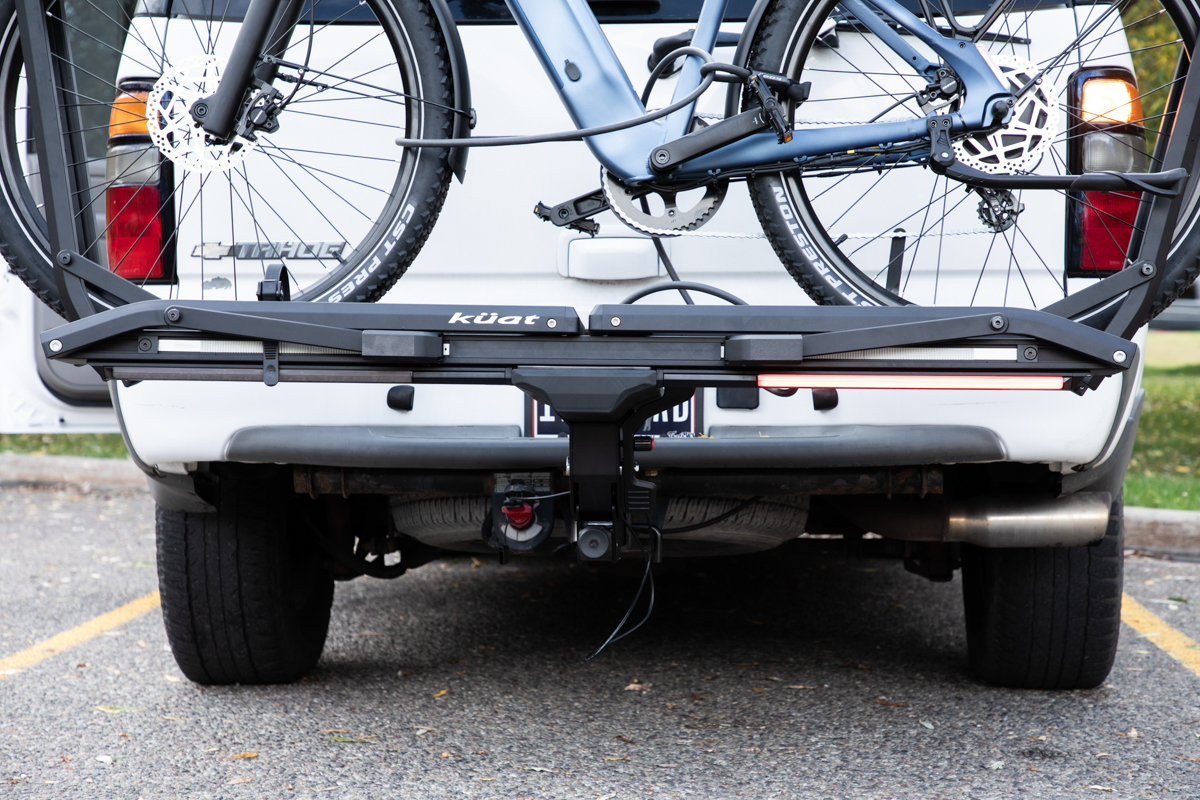

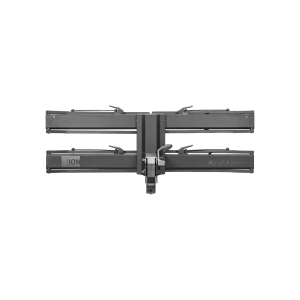

The Piston ION is Kuat’s dedicated hitch rack for electric bikes with its increased payload capacity and functional design. The robust construction also means the ION model is rated for RV use and off-road travel where bumps and vibrations truly test the sturdiness of a rack. The 2” chassis-mounted hitch rack has a 100 lbs per tray maximum capacity to carry heavy e-bikes.

The ION is off-road-approved, but that doesn’t mean you can fly down dirt roads with huge potholes. Testing revealed certain limits to the rack where I wouldn’t want to risk the safety of my bikes, but I rarely want to drive that aggressively anyway. The rack can be installed on all sorts of setups like RVs, fifth wheel, cars, and trucks with 2” hitch receivers.

The ION is an alternative to the the Kuat Piston Pro X Rack (checkout our review) with more hitch and bike capacity options, pneumatic tire arms, standard payload limit, and slightly higher price tag. In comparison, the ION takes a more practical approach with a single 2-bike option and simpler build, though I wouldn’t describe it as “no-frills” because it’s built around premium parts and really smart engineering.

High-Quality Build and Design

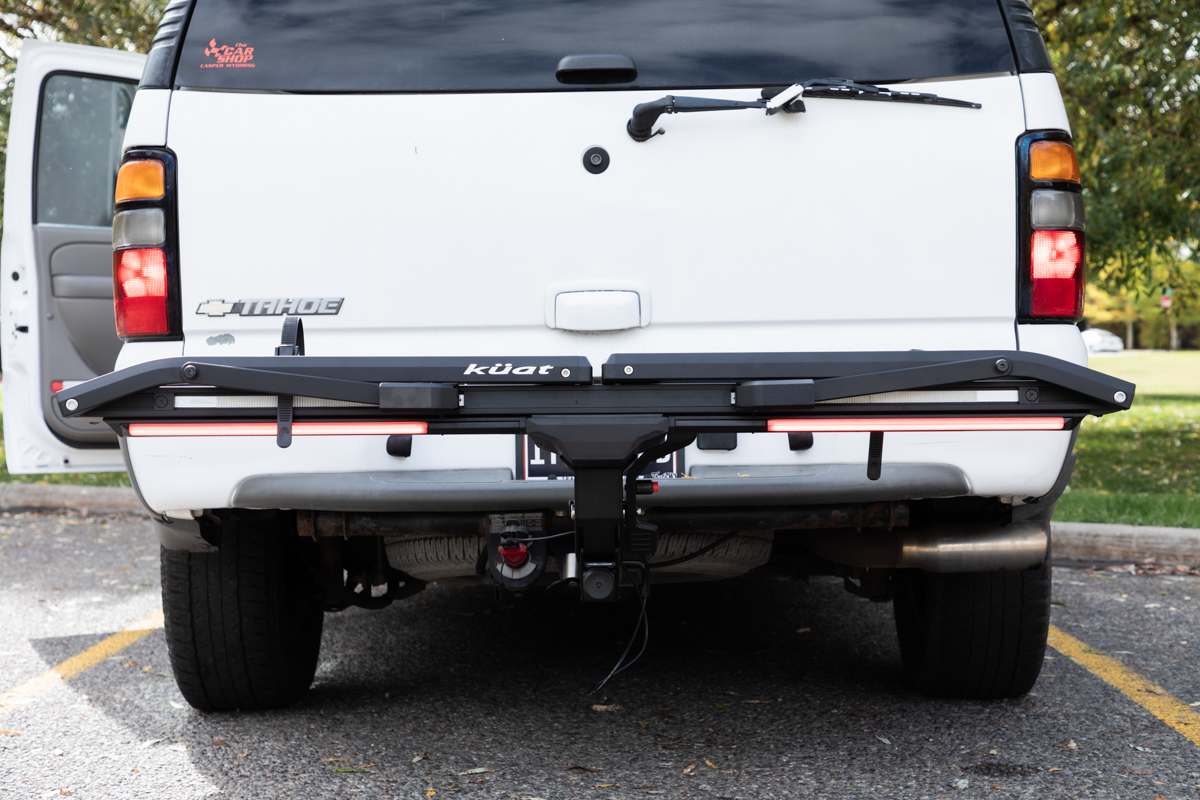

As with most Kuat racks, the ION shows off impressive design, ease of use, and premium build quality. A great bike rack for your vehicle is a worthwhile investment to not only keep your precious two-wheelers safe and secure, but enhance your time out on the road. The ION is easy to load and the slideable wheel chocks clamp onto tires securely. The ION is compatible with 2” hitch receivers to handle the extra weight of e-bikes, with optional add-ons like integrated lights and a license plate holder.

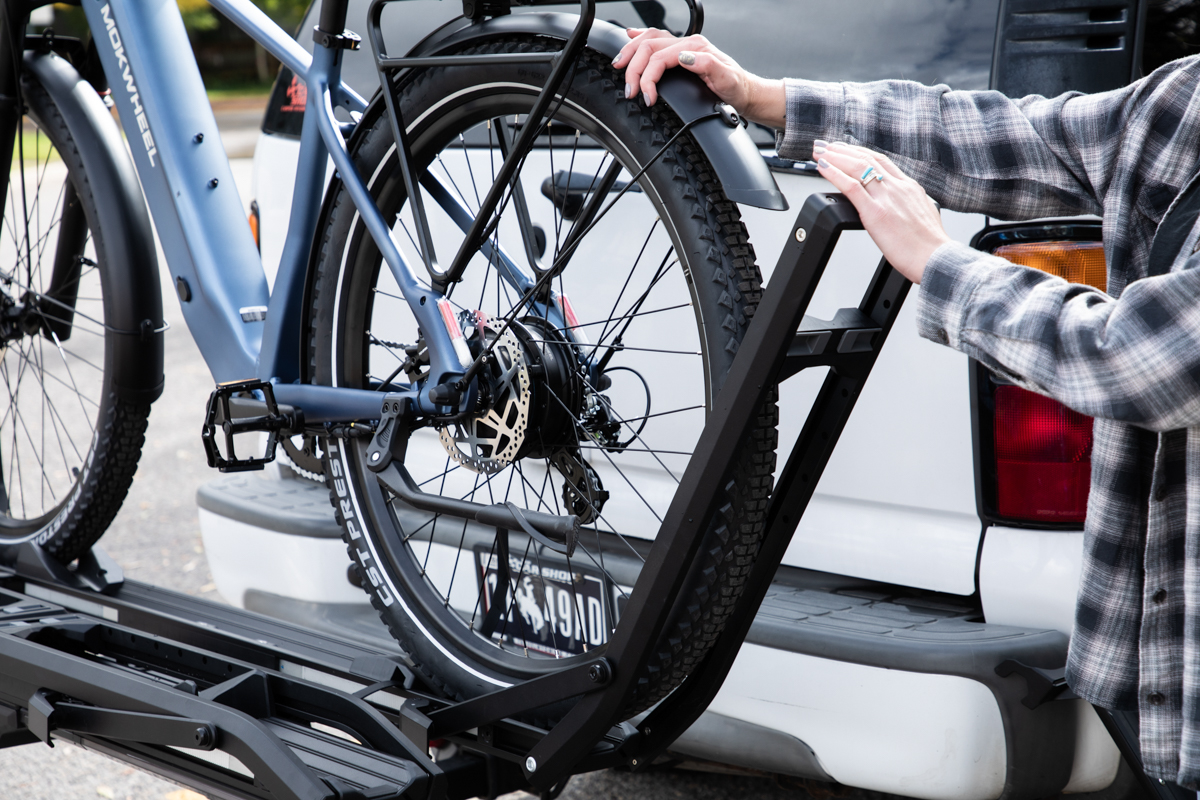

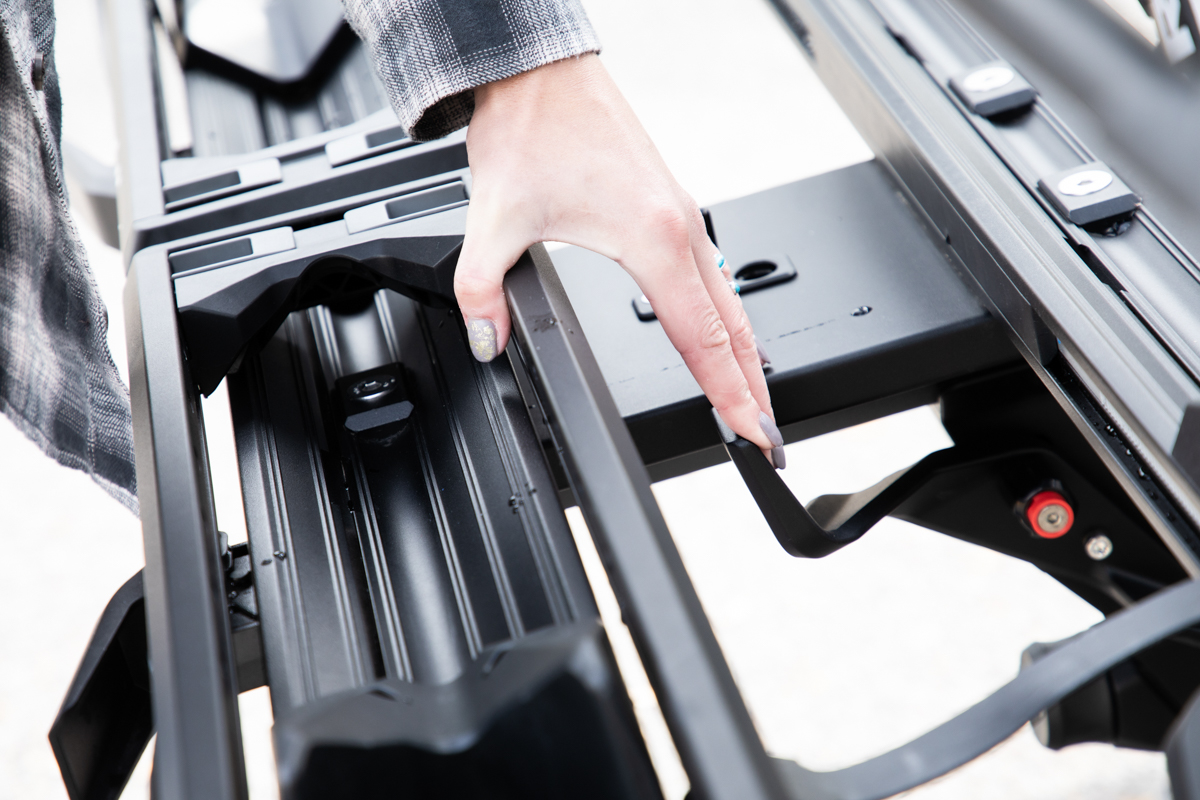

The wheel chock system can be adjusted for the perfect fit on tires and achieved a great, secure fit on the bikes used during testing. The ION accommodates all wheel sized from 18” to 29” with a maximum tire width of 4.8”. Kuat indicates the maximum bike wheelbase as 57” which is large enough for slightly longer cargo or utility models such as the the short-tail Specialized Globe Haul.

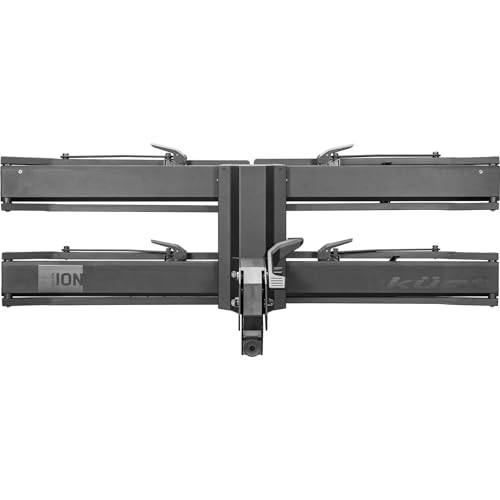

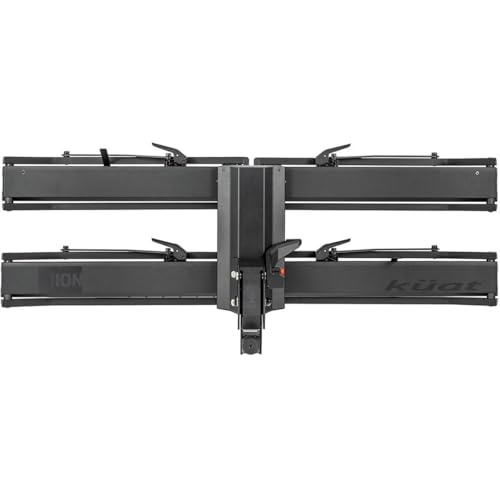

Kuat Piston Ion 100 lbs. Per Bike Capacity

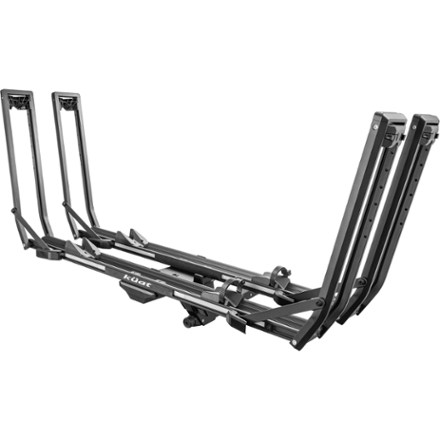

The platform or tray-style hitch rack can hold two bikes, up to 100 pounds each. This ultra-high payload maximum can accommodate hefty models like cargo, MTB, and fat tire electric bikes that may otherwise surpass a typical rack’s weight limit. The bikes are secured via slideable wheel chocks on the front and rear tires— meaning no frame contact— as well as a rear wheel strap. The ION comes with straps to work around fenders, too.

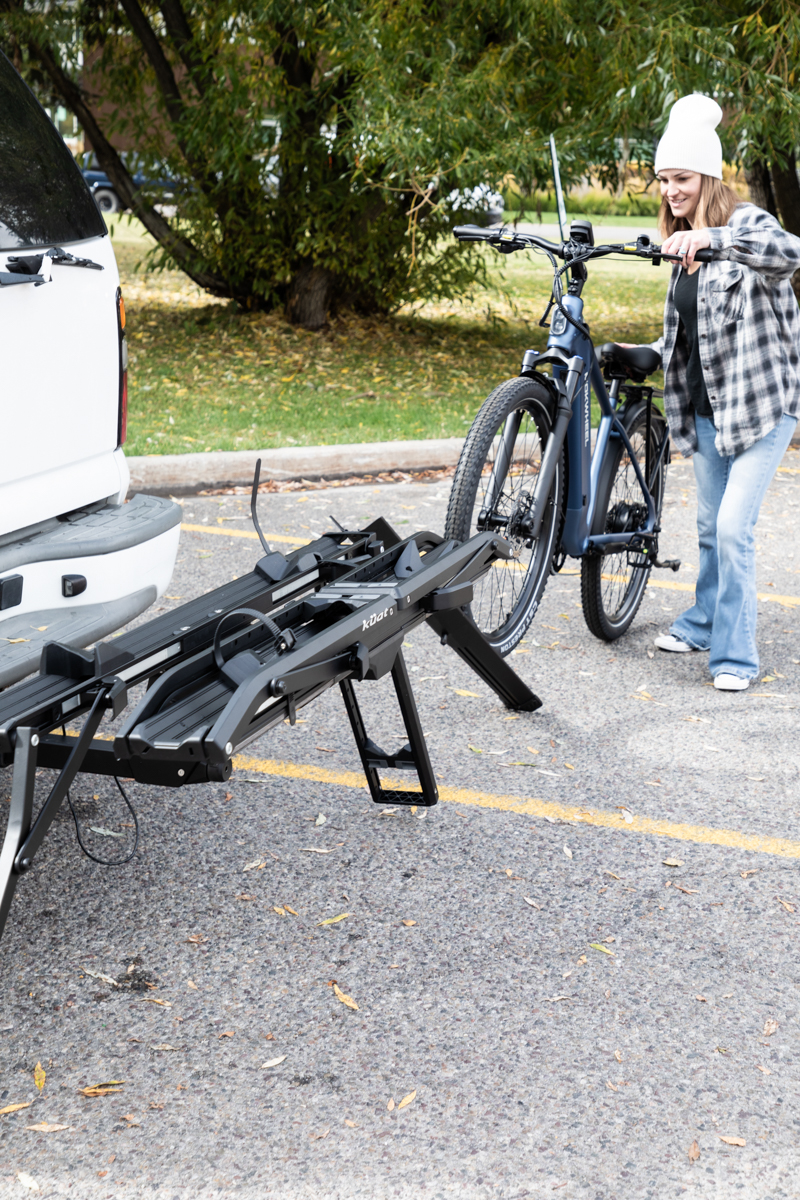

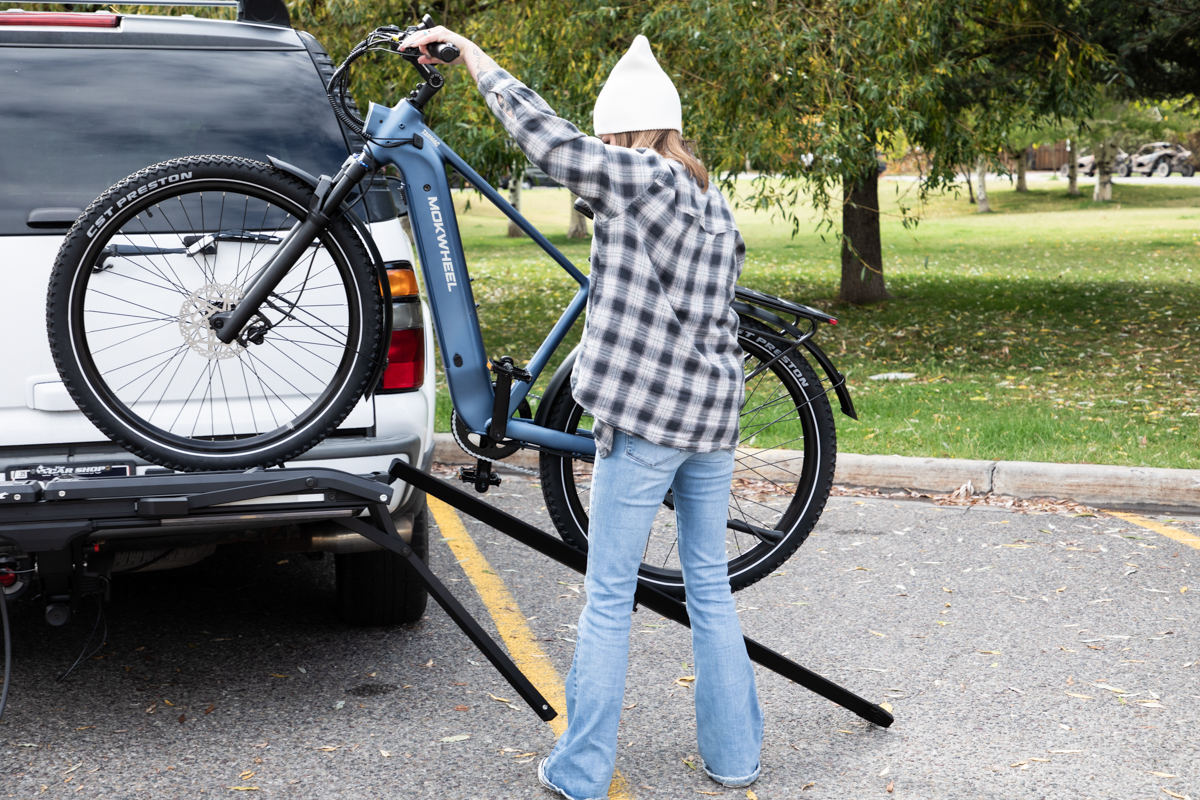

Easy-Load E-Bike Ramp Included

I especially appreciated the aluminum rack that’s included with the Kuat ION. Electric bikes are heavier than regular bicycles, making them more difficult to lift and load onto bike racks. One drawback, however, is that the ramp doesn’t seat into the rack during transport, so you’ll need to put it inside your vehicle after loading.

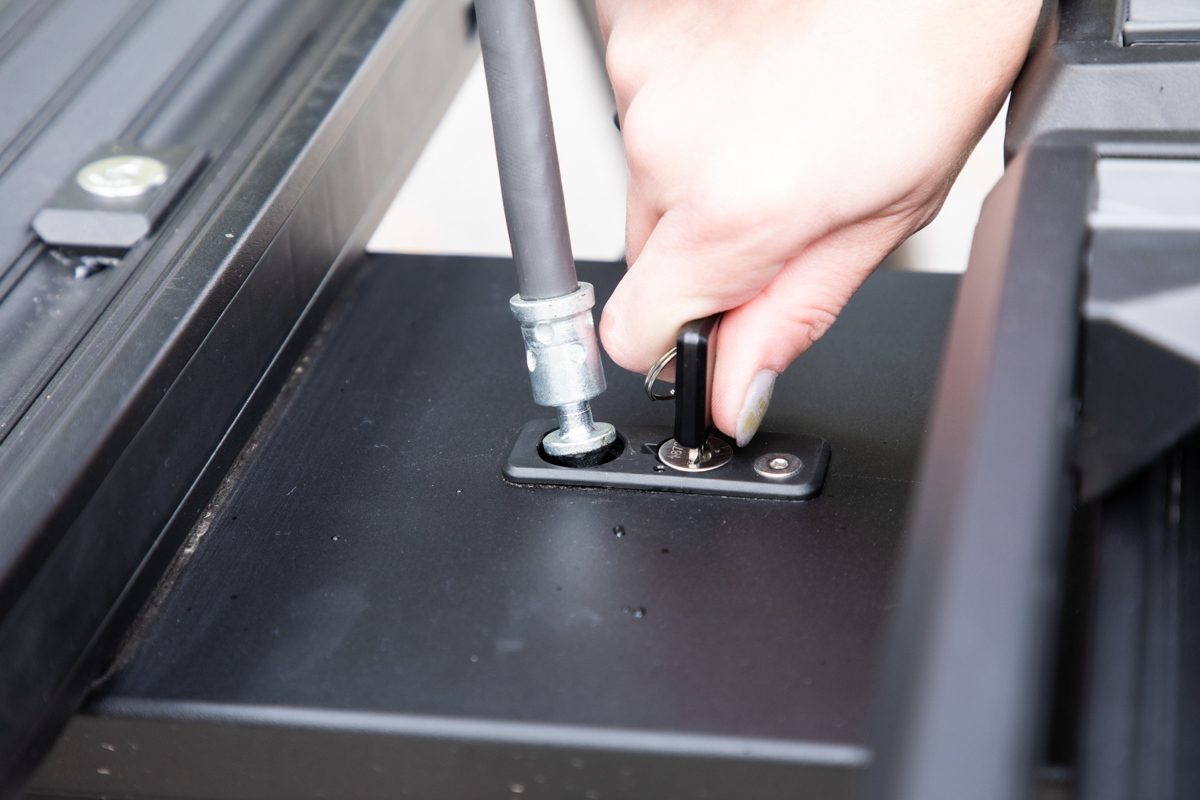

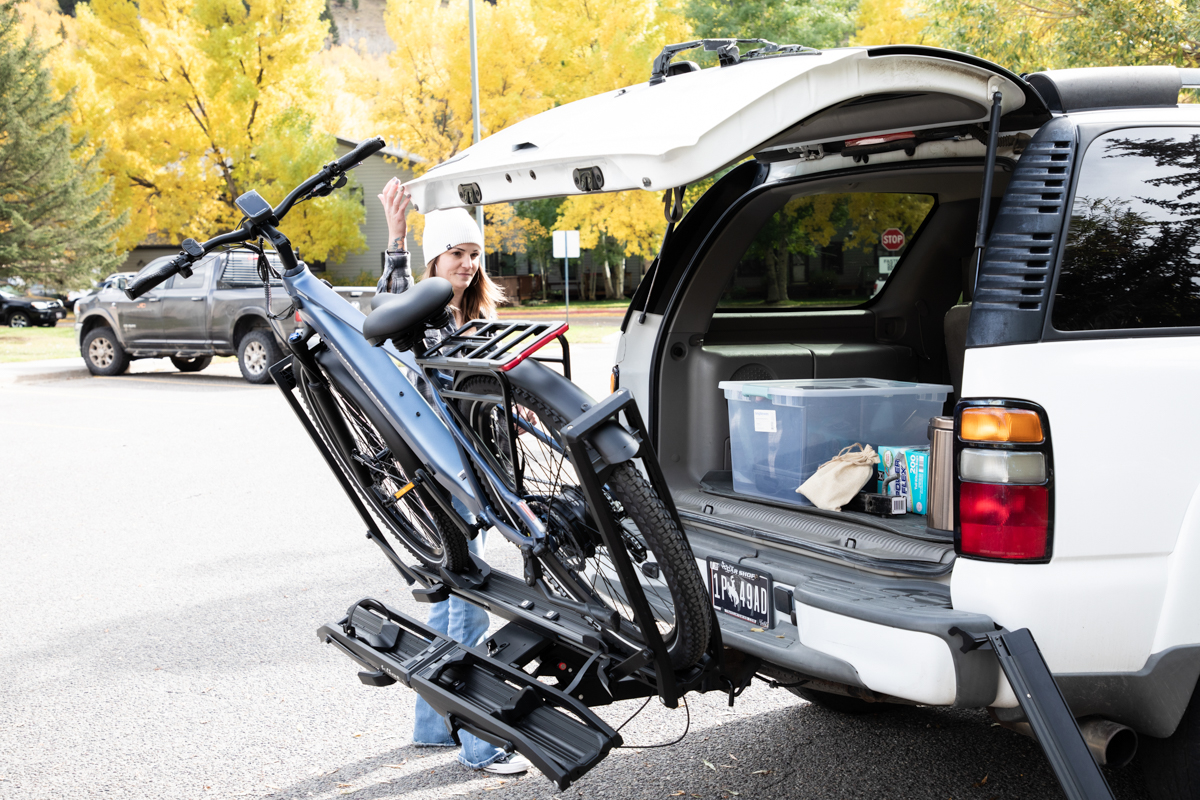

The ION also comes with a 12mm cable lock to secure bikes and a stainless steel barrel hitch lock. The hitch rack can be leaned outwards for easier access to the trunk when bikes are loaded. Kuat’s Foot Pedal Lock and PedalPivot system help fold the rack up and down, which is a huge advantage.

Who is the Kuat Piston Ion Rack For?

The Kuat Piston ION is made for those who need a heavy-duty, high-quality Kuat Piston ION Weight is 68lbs which is sturdy and can handle the extra weight of electric bikes and off-road adventures. It’s ideal for e-bikers driving SUVs, trucks, or RVs who want a stable and secure platform for their bikes. Whether you’re hauling beefy MTBs to the trailhead or heading off-grid with bulky fat-tire e-bikes, the ION offers the strength, design, and ease of use needed for serious riders who value reliability and simplicity over flashy extras.

Kuat Piston Ion Rack Pros & Cons

Pros

• Massive 100 lb per-bike weight capacity
• Off-road and RV rated for rugged travel
• Premium build quality with easy loading system
• Secure tire-clamping design avoids frame contact
• Includes ramp and integrated lock system

Cons

• Ramp doesn’t attach to the rack for storage
• Limited options, only 2-bike and for 2” hitches
• Pricier than basic 2-bike racks

Overall Impression

The Kuat Piston ION 2 E-Bike Rack ($1,289.99) delivers premium quality and serious strength for hauling heavy e-bikes. Its high weight capacity, off-road rating, and smart design make it one of the most capable racks in its class. While it’s heavier and pricier than simpler options, the ION’s durability and ease of use make it a dependable choice for riders who want a rack built to last.
